Cable Tray interl. ends light

CTLI60-2

+ 1 photos

Cable Tray interl. ends light

Name: Trayco
Address: Bedrijvenpark Coupure 5A, Oudenaarde, Oost-Vlaanderen, 9700, Belgium
Telephone: +32 (0)55 23 29 90

CTLI60-2

Connect with BN06-10
Coated finishing available on demand. RAL colour code to be confirmed on your order.

Requesting a quote

Technical Data Sheet

Catalog

Technical info Assembly Load diagram Accessories and options

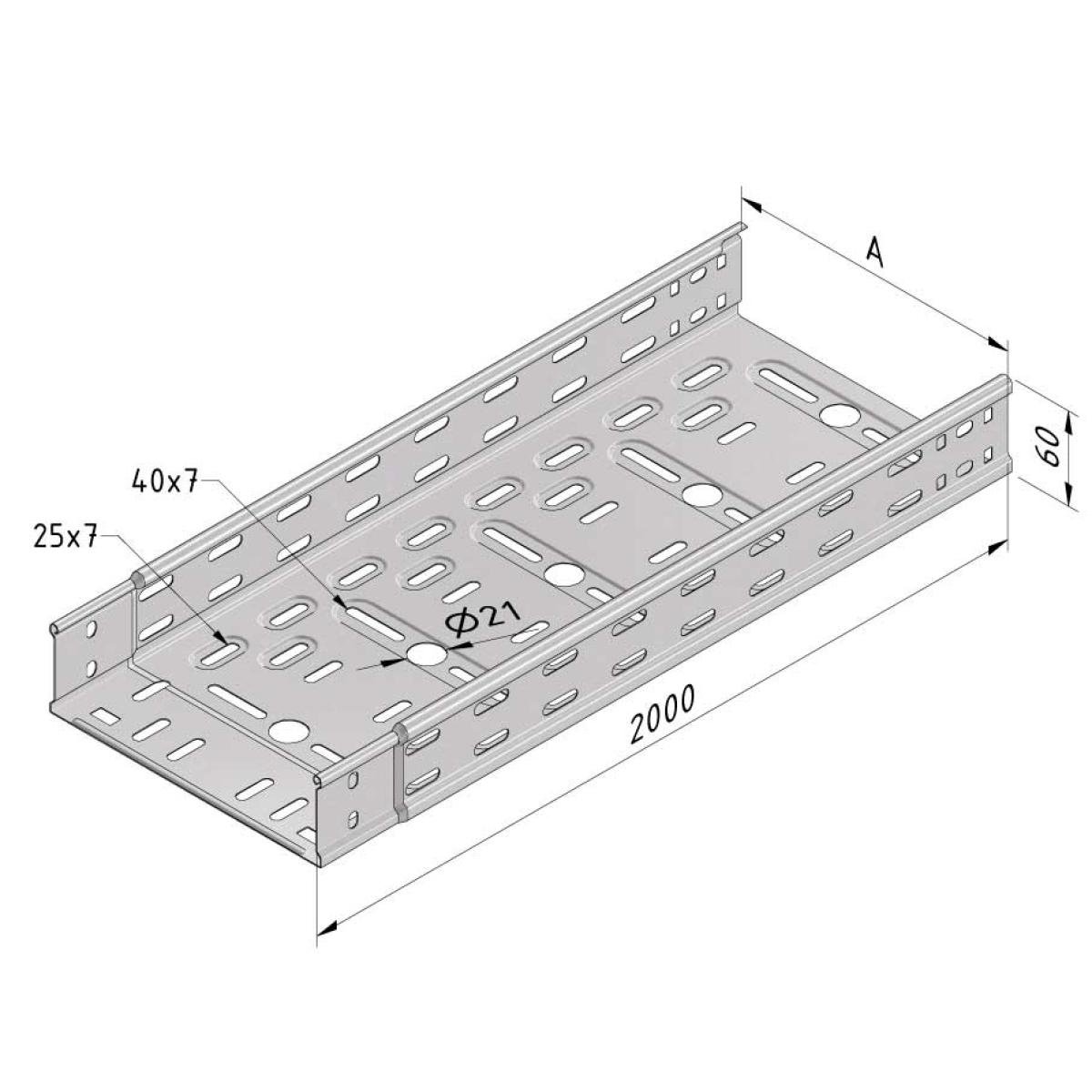

	SKU	Article code	Finishing	Dimension A	Usable surface (cm²)	Packaging
	14416	CTLI60-050-2PG	PG	50	23.4	2

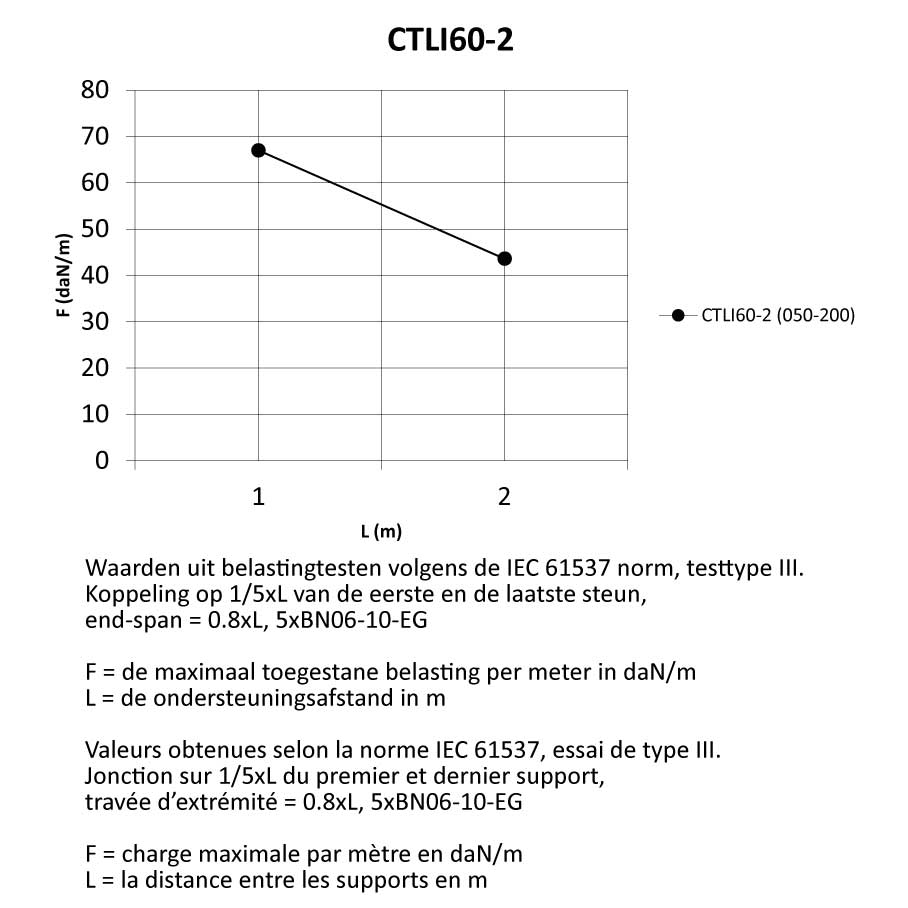

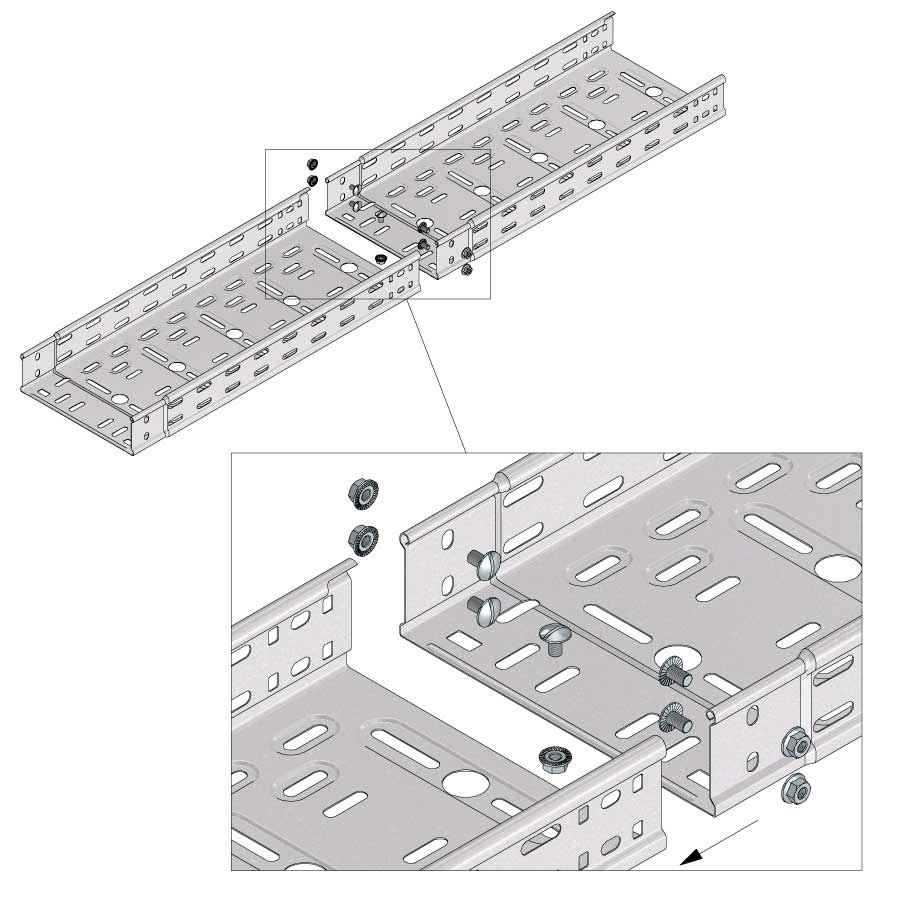

EAN 5415129042933 Assembly Workload Norm IEC61537 Safe workload - Max. torque - Load graph Additional information Product features Connect with BN06-10 Coated finishing available on demand. RAL colour code to be confirmed on your order. Equipotential connection IEC61537 EC declaration of conformity We declare that our products are in conformity with: - the rules of the essential requirements of the EC directive: 2014/35/EU (low voltage) - the applicable national standards and technical specifications: CEI IEC 61537 Technical documentation is available at the manufacturer location. (On condition that the products are used in the manner intended and/or in accordance with the current installation standards and/or with the recommendations of the manufacturer.) Finishing Sendzimir galvanized (EN 10143) PG (pre-galvanized): Products made of Sendzimir (pre-galvanized) or continuous hot-dip galvanized steel sheet and coils are mostly used wherever limited chemical contamination is likely, for example, in of ces, industrial buildings, covered parking lots, etc. Characteristic of this steel type is that – prior to mechanical deformation – it is given a zinc coating by means of a continuous dipping process. This zinc coating is easily deformed. A cathodic action occurs on cut surfaces (up to 1.5mm) that protects against oxidation. First, the steel is chemical cleaned and roughened in order to achieve a good bond. After the dipping process, the surplus zinc is blown oﬀ and one obtains an extra passivating coat (an ultra-thin protective coat) to prevent oxidation of the zinc coating (white rust). The coating thickness is usually expressed in g/m2. The most deployed type of Sendzimir steel is Z 275 = 275g/m2 (weighed on both sides), this corresponds to 18-20 µm (micron). Sendzimir galvanized steel sourced from modern galvanizing lines has, in general, a uniform, shiny appearance. The previous, common ﬂ owery surface is scarcely seen these days. This eﬀect is obtained under the inﬂ uence of lead but has no eﬀ ect on the quality of the coating. The use of lead was banned due to the ever more stringent environmental standards.
	14405	CTLI60-100-2PG	PG	100	52.73	2
EAN 5415129042827 Assembly Workload Norm IEC61537 Safe workload - Max. torque - Load graph Additional information Product features Connect with BN06-10 Coated finishing available on demand. RAL colour code to be confirmed on your order. Equipotential connection IEC61537 EC declaration of conformity We declare that our products are in conformity with: - the rules of the essential requirements of the EC directive: 2014/35/EU (low voltage) - the applicable national standards and technical specifications: CEI IEC 61537 Technical documentation is available at the manufacturer location. (On condition that the products are used in the manner intended and/or in accordance with the current installation standards and/or with the recommendations of the manufacturer.) Finishing Sendzimir galvanized (EN 10143) PG (pre-galvanized): Products made of Sendzimir (pre-galvanized) or continuous hot-dip galvanized steel sheet and coils are mostly used wherever limited chemical contamination is likely, for example, in of ces, industrial buildings, covered parking lots, etc. Characteristic of this steel type is that – prior to mechanical deformation – it is given a zinc coating by means of a continuous dipping process. This zinc coating is easily deformed. A cathodic action occurs on cut surfaces (up to 1.5mm) that protects against oxidation. First, the steel is chemical cleaned and roughened in order to achieve a good bond. After the dipping process, the surplus zinc is blown oﬀ and one obtains an extra passivating coat (an ultra-thin protective coat) to prevent oxidation of the zinc coating (white rust). The coating thickness is usually expressed in g/m2. The most deployed type of Sendzimir steel is Z 275 = 275g/m2 (weighed on both sides), this corresponds to 18-20 µm (micron). Sendzimir galvanized steel sourced from modern galvanizing lines has, in general, a uniform, shiny appearance. The previous, common ﬂ owery surface is scarcely seen these days. This eﬀect is obtained under the inﬂ uence of lead but has no eﬀ ect on the quality of the coating. The use of lead was banned due to the ever more stringent environmental standards.
	14406	CTLI60-150-2PG	PG	150	82.05	2
EAN 5415129042834 Assembly Workload Norm IEC61537 Safe workload - Max. torque - Load graph Additional information Product features Connect with BN06-10 Coated finishing available on demand. RAL colour code to be confirmed on your order. Equipotential connection IEC61537 EC declaration of conformity We declare that our products are in conformity with: - the rules of the essential requirements of the EC directive: 2014/35/EU (low voltage) - the applicable national standards and technical specifications: CEI IEC 61537 Technical documentation is available at the manufacturer location. (On condition that the products are used in the manner intended and/or in accordance with the current installation standards and/or with the recommendations of the manufacturer.) Finishing Sendzimir galvanized (EN 10143) PG (pre-galvanized): Products made of Sendzimir (pre-galvanized) or continuous hot-dip galvanized steel sheet and coils are mostly used wherever limited chemical contamination is likely, for example, in of ces, industrial buildings, covered parking lots, etc. Characteristic of this steel type is that – prior to mechanical deformation – it is given a zinc coating by means of a continuous dipping process. This zinc coating is easily deformed. A cathodic action occurs on cut surfaces (up to 1.5mm) that protects against oxidation. First, the steel is chemical cleaned and roughened in order to achieve a good bond. After the dipping process, the surplus zinc is blown oﬀ and one obtains an extra passivating coat (an ultra-thin protective coat) to prevent oxidation of the zinc coating (white rust). The coating thickness is usually expressed in g/m2. The most deployed type of Sendzimir steel is Z 275 = 275g/m2 (weighed on both sides), this corresponds to 18-20 µm (micron). Sendzimir galvanized steel sourced from modern galvanizing lines has, in general, a uniform, shiny appearance. The previous, common ﬂ owery surface is scarcely seen these days. This eﬀect is obtained under the inﬂ uence of lead but has no eﬀ ect on the quality of the coating. The use of lead was banned due to the ever more stringent environmental standards.
	14407	CTLI60-200-2PG	PG	200	111.38	2
EAN 5415129042841 Assembly Workload Norm IEC61537 Safe workload - Max. torque - Load graph Additional information Product features Connect with BN06-10 Coated finishing available on demand. RAL colour code to be confirmed on your order. Equipotential connection IEC61537 EC declaration of conformity We declare that our products are in conformity with: - the rules of the essential requirements of the EC directive: 2014/35/EU (low voltage) - the applicable national standards and technical specifications: CEI IEC 61537 Technical documentation is available at the manufacturer location. (On condition that the products are used in the manner intended and/or in accordance with the current installation standards and/or with the recommendations of the manufacturer.) Finishing Sendzimir galvanized (EN 10143) PG (pre-galvanized): Products made of Sendzimir (pre-galvanized) or continuous hot-dip galvanized steel sheet and coils are mostly used wherever limited chemical contamination is likely, for example, in of ces, industrial buildings, covered parking lots, etc. Characteristic of this steel type is that – prior to mechanical deformation – it is given a zinc coating by means of a continuous dipping process. This zinc coating is easily deformed. A cathodic action occurs on cut surfaces (up to 1.5mm) that protects against oxidation. First, the steel is chemical cleaned and roughened in order to achieve a good bond. After the dipping process, the surplus zinc is blown oﬀ and one obtains an extra passivating coat (an ultra-thin protective coat) to prevent oxidation of the zinc coating (white rust). The coating thickness is usually expressed in g/m2. The most deployed type of Sendzimir steel is Z 275 = 275g/m2 (weighed on both sides), this corresponds to 18-20 µm (micron). Sendzimir galvanized steel sourced from modern galvanizing lines has, in general, a uniform, shiny appearance. The previous, common ﬂ owery surface is scarcely seen these days. This eﬀect is obtained under the inﬂ uence of lead but has no eﬀ ect on the quality of the coating. The use of lead was banned due to the ever more stringent environmental standards.
